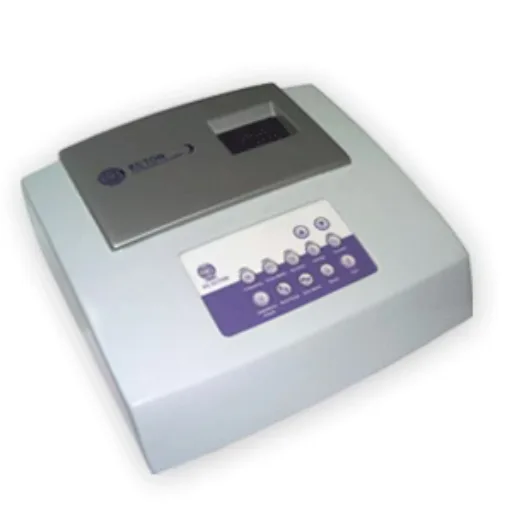

ECTON – FEATURES

Features

Portable & Lightweight
Alphanumeric LCD Display
Easy-to-clean Feather Touch Keypad
Dual Operating Modes:

Sine Wave Mode
Brief Pulse Mode

Additional Features (Available in PC ECTON)

EEG, ECG & EMG Monitoring
Session-wise Records Saved for Each Patient
View / Edit / Delete Any Session Anytime
Patient Database Search Facility
Automatic Convulsion Calculation
Heart Rate Variability
Event Marking
Automatic Report Generation
Time Measurement Tool
Peak-to-Peak Measurement Tool
Heart Rate Measurement Tool
Selectable Filters, Sensitivity, Deflection & Channel Color
Raster & Continuous Viewing of Waveforms

ECT TECHNICAL SPECIFICATIONS

ECTON – Brief Pulse Mode

Parameters Selectable by User: Frequency, Duration, Pulse Width, Current
Energy: Automatically calculated by the micro-computer
Type: Bidirectional Square Wave

Specifications

Frequency: Selectable 10 Hz – 140 Hz (15 steps of 10 Hz each)
Pulse Width: 0.10 ms – 2.0 ms (20 steps of 0.1 ms each)
Duration: 0.10 secs – 5 secs (50 steps of 0.10 secs each)
Current: 500 mA – 800 mA (7 steps of 50 mA each)
Energy: Delivered according to head impedance

Sine Wave Mode

Current: 650 mA (fixed)
Frequency: 50 Hz (fixed)
Duration: 0.5 ms (fixed)
Energy: Delivered according to head impedance

PC ECTON

No. of Channels: 2 (ECG & EEG)
CMRR: > 90 dB
A/D Resolution: 12 Bits Unipolar
Low-Pass Frequency (Hz) Options -DC, 0.1, 0.3, 0.5, 1, 3, 5, 7, 10
High-Pass Frequency (Hz) Options -0.1, 0.3, 0.5, 1, 2, 5, 10, 15, 35, 70, 99
Sensitivity (µV) Options - 1, 2, 3, 5, 7.5, 10, 15, 20, 30, 50, 75, 100, 200, 300, 500, 750, 1000, 1500
Sampling Rate: 256
Interface: RS-232

RMS Quadramind is an advanced multitherapy medical system that combines four powerful therapeutic modalities in a single compact, easy-to-operate device—designed for effective psychiatric, behavioral, and physiological treatments.

4-in-1 Therapy Combination

Sex Therapy
Electrosleep Therapy
Brain Polariser Therapy
Aversion Therapy

Specially designed for hospitals, psychiatry clinics, de-addiction centers, and advanced therapy institutions, RMS Quadramind provides safe, controlled, and non-invasive stimulation suitable for a wide range of behavioral and neurological conditions.

Manufacturer

RMS – Recorders & Medicare Systems Pvt. Ltd.

ISO 9001:2015 Certified
EN ISO 13485:2016 Certified

DETAILED THERAPIES & SPECIFICATIONS

1. Sex Therapy

Used for treating sexual dysfunctions caused by psychological factors.

Features & Specifications

Male & female therapies can run simultaneously
Male Stimulus Intensity: 0–10 Volts (Variable)
Female Vibrating Intensity: 0–5 Volts (Variable)
Male Electrode: Rubber pad electrode
Female Electrode: Vaginal-shaped vibrating electrode

2. Electrosleep Therapy

Commonly used for treatment of:

Chronic insomnia
Anxiety & depression
Psychosomatic disorders (e.g., asthma)
Tension headaches
Organic disorders including hypertension

Features & Specifications

Short-duration, low-amplitude direct current pulses
Helps normalize:
Nervous system activity
Psycho-emotional balance
Internal organ functioning
Stimulus Intensity: 0–30 Volts (Variable)
Audio Stimulus: Electrical pulses + audio stimulation
Therapy Principle: Based on SOMLEC Therapy
Electrodes: Velcro tape electrodes

3. Brain Polariser Therapy

Used primarily in the treatment of depression, especially where ECT or medication fails.

A fully non-convulsive, gentle therapeutic option.

Features & Specifications

Low-intensity pulsating current
Stimulus Intensity: 0–10 Volts (Variable)
Electrodes: Velcro tape electrodes

4. Aversion Therapy

Used for modifying undesirable or addictive behavior patterns, including:

Alcohol dependence
Chain smoking
Other addictions

Features & Specifications

Stimulus Intensity: 0–100 Volts (Variable)
Remote-controlled operation
Electrodes: Velcro tape electrodes

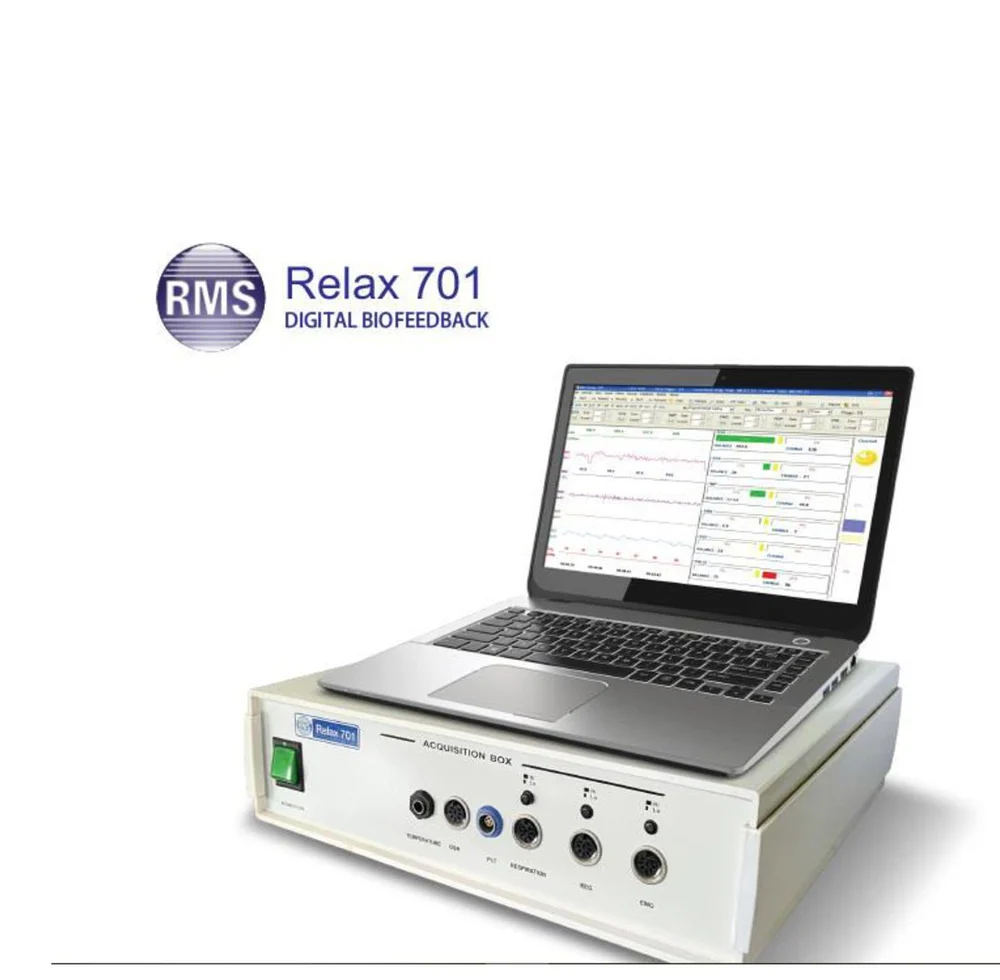

RMS Relax 701 is an advanced digital biofeedback system developed for relaxation training, stress reduction, and physiological monitoring.

It enables clinicians and therapists to evaluate and improve mind–body coordination by analyzing real-time biological signals.

Supported Parameters

EMG (Muscle Activity)
EEG – Alpha Waves
Respiration
GSR – Galvanic Skin Response
Temperature
Pulse
ECG & HRV (Optional)

Key Functional Features

Continuous graphical display of all parameters—individually or simultaneously
Visual feedback through digital display and color bar graph
Audio feedback through headphones or speakers
Option to play custom relaxation audio
Option to display visual relaxation content on screen
Patient data storage for long-term review
Progress graph plotting for each parameter
User-definable event marker
Optional video and audio recording facility

TECHNICAL SPECIFICATIONS & SYSTEM REQUIREMENTS

RELAX 701 – Technical Specifications

Number of Channels: 6
A/D Conversion: 14-bit
Sampling Rate: 256 Hz
Sensitivity: 1 to 1500 µV/mm
Low Pass Filter Options: 0.1, 0.3, 0.5, 1, 3, 5, 7 Hz
High Pass Filter Options: 0.1, 0.3, 0.5, 2, 10, 15, 35, 70, 99 Hz
Sweep Speed: 15, 30, 60, 100 mm/sec
Notch Filter: 50 Hz
Input Impedance: > 10 MΩ
CMRR: > 80–85 dB
Power Supply: 220V AC / 12V, 2.2 AH
Battery Backup: Approximately 3 Hours

Inputs

EEG (Alpha): Silver–silver chloride electrodes
EMG: Silver–silver chloride electrodes
GSR: Two silver–silver chloride electrodes
Pulse: Infrared sensor
Respiration: Chest belt
Temperature: Surface temperature probe

Transducers & Accessories (Standard Supply)

Respiration belt – 1 No.
Pulse sensor – 1 No.
Temperature sensor – 1 No.
GSR electrodes – 1 Set
EEG electrodes – 1 Set
EMG disc electrodes – 1 Set
EEG paste – 1 Jar
Fuse – 2 Nos.
Earthing cord – 1 No.
User manual – 1 No.
Conductive jelly – 1 Tube

Minimum Computer Configuration

Operating System: Windows XP Pro / Windows 7 Professional (32-bit)
Processor: Core 2 Duo or higher
RAM: 2 GB or higher
Hard Disk: 40 GB or higher
CD/DVD Optical Drive
Screen Resolution: 1024 × 768 or higher
